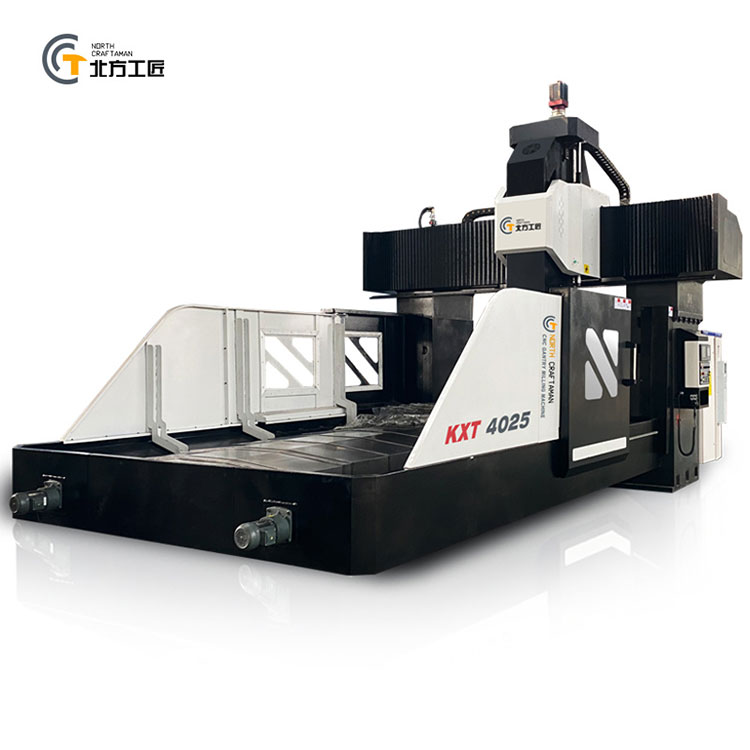

CNC gantry milling is a high-precision, high-efficiency mechanical processing equipment with a wide range of applications.
1. Working principle
CNC gantry milling uses a computer control system to automatically control the milling process, which can meet the production needs of complex parts. Here's how it works:
First, use CAD software to design and generate executable G code.
Input the G code into the program memory in the CNC system, and the computer control system controls each motion axis of the machine tool so that the tool on the machine tool mills on the workpiece surface according to the predetermined path.
During the entire processing process, the CNC system can monitor various parameters of the machine tool in real time, such as speed, position, tool status, etc., thereby ensuring the accuracy and quality of processing.
2. Structural composition
CNC gantry milling mainly consists of five parts: fuselage, workbench, slide, spindle box and CNC system. Each part has different functions and roles.
Body: The body of the CNC gantry milling machine is composed of large castings with high strength and rigidity. The machine body is the supporting structure of the entire machine tool and can withstand various processing forces and vibrations.
Workbench: The workbench is a flat surface used to hold workpieces, usually made of cast iron or steel plates. The worktable of CNC gantry milling can rotate, tilt and lift to adapt to different types of processing tasks.
Slide: The slide is the component responsible for moving the tool. It is usually installed above the fuselage and connected to the spindle box. The carriage of CNC gantry milling can move forward and backward, left and right, and up and down to achieve three-dimensional milling.
Spindle box: The spindle box is the component that installs the spindle, usually made of cast iron or steel plate. The spindle box is equipped with a spindle motor and cutting tools, which can realize high-speed rotation and milling processing.
CNC system: The CNC system is the core component of CNC gantry milling and is responsible for automatic control of the machine tool. CNC systems usually consist of computers, controllers and electrical components and are capable of completing complex milling tasks.
3. Characteristics
CNC gantry milling has the following characteristics:
High precision: The CNC system can monitor various parameters of the machine tool in real time to ensure the accuracy and quality of processing.
High efficiency: Using automated control, complex milling tasks can be completed quickly and accurately.
Multifunctional: It can adapt to different types of processing tasks, and can perform various processing operations such as three-dimensional milling, drilling, and tapping.
Easy to operate: Its operation interface is simple and easy to understand, and the operator only needs to master certain CNC programming knowledge to operate.
