In the aerospace industry, precision, efficiency, and reliability are essential at every stage of manufacturing. Aerospace tooling, which includes large molds, composite tooling, structural fixtures, assembly jigs, and aircraft component supports, must meet extremely strict standards for accuracy and surface quality. To produce such tooling efficiently, manufacturers increasingly rely on the High speed gantry machining center. This advanced machine tool has become a key solution for aerospace tooling because it combines high rigidity, large working envelopes, strong cutting performance, and excellent machining accuracy.
What Is a High Speed Gantry machining center?

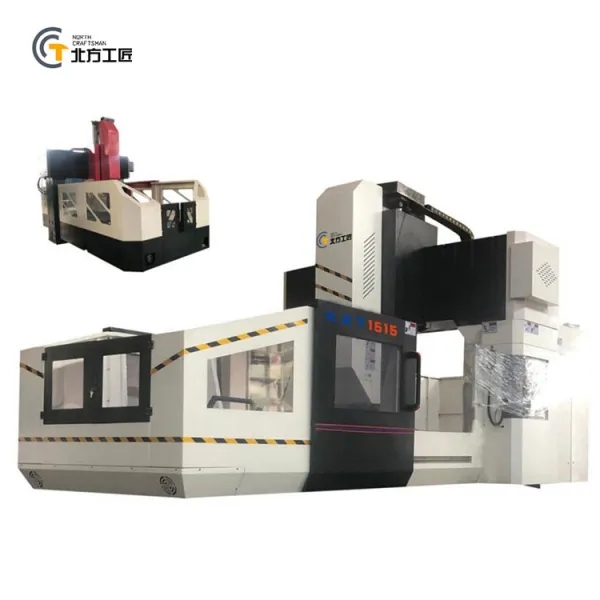

A gantry machining center is a large machine tool designed with a bridge-like structure. The spindle head moves across a fixed worktable, while the gantry frame travels along linear guideways or rails. This architecture provides excellent stability and allows the machine to handle large and heavy workpieces. When equipped with high-speed spindle systems, advanced servo drives, and precision control technology, it becomes a high speed gantry machining center.
Unlike conventional machining centers, which are often limited in size and load capacity, a gantry machining center is built for large-scale machining tasks. It is particularly suitable for aerospace tooling, where oversized parts, complex shapes, and tight tolerances are common requirements.
Importance in Aerospace Tooling
Aerospace tooling plays a critical role in the production of aircraft and spacecraft components. It is used to support composite layup, part assembly, drilling, trimming, inspection, and positioning. Since aerospace parts often have complex geometries and are made from advanced materials such as aluminum alloys, titanium, and carbon fiber composites, the tooling itself must be manufactured with extreme precision.
A high speed gantry machining center is ideal for this purpose because it can machine large tooling surfaces in a single setup. This reduces positioning errors, shortens production time, and improves consistency. In aerospace manufacturing, where even a small deviation can affect part quality and assembly accuracy, these advantages are highly valuable.
Key Features and Advantages
1. Large Machining Area
One of the biggest advantages of a gantry machining center is its large working envelope. Aerospace tooling components can be several meters long or wide, and traditional machine tools may not be able to process them efficiently. The gantry structure allows the machine to accommodate large tooling bases, molds, and fixtures without sacrificing precision.
2. High Rigidity and Stability
Aerospace tooling often requires heavy-duty cutting operations, especially when machining aluminum structural tooling or large steel fixtures. The gantry frame provides strong support and reduces vibration during high-speed movement. This rigidity is essential for maintaining dimensional accuracy and achieving smooth surface finishes.
3. High-Speed Spindle Performance
The high-speed spindle is one of the defining characteristics of this machine. It enables fast cutting, efficient material removal, and excellent finishing quality. For aerospace tooling, surface quality is often just as important as dimensional accuracy, especially when tooling is used for composite layup or aerodynamic component production.
4. Precision and Repeatability
Modern high speed gantry machining centers use advanced CNC systems, linear scales, and servo control technologies to achieve precise movement and repeatability. This ensures that the machine can consistently produce tooling parts within very tight tolerance ranges.
5. Multi-Axis Capability
Many aerospace tooling applications require machining of complex 3D surfaces and curved profiles. High speed gantry machining centers can be equipped with 3-axis, 4-axis, or 5-axis configurations, enabling efficient machining of intricate shapes without frequent repositioning. This is especially useful for molds, contoured fixtures, and aerodynamic surfaces.
Applications in Aerospace Tooling
High speed gantry machining centers are widely used in the production of many aerospace tooling products.
Composite Tooling
Composite materials are heavily used in modern aerospace engineering due to their lightweight and high-strength characteristics. Tooling for composite parts must have extremely accurate shapes and smooth surfaces to ensure proper layup and curing. Gantry machining centers can produce large composite molds, autoclave tooling, and trim fixtures with excellent precision.
Assembly Fixtures and Jigs
Aircraft assembly requires large, stable fixtures to hold fuselage sections, wings, and other components in the correct position. These fixtures must be machined accurately to ensure alignment during assembly. Gantry machines are well suited to producing such large structural tooling.
Structural Molds
Aerodynamic components such as wing surfaces, fairings, and panels require large molds with complex curvature. A high speed gantry machining center can machine these surfaces efficiently while maintaining the surface integrity needed for downstream production.
Drilling and Trimming Fixtures
Aerospace parts often need precise drilling and trimming operations. Tooling used for these tasks must be accurate and durable. Gantry machining centers are capable of producing these specialized fixtures with high repeatability.
Material Compatibility
Aerospace tooling materials vary depending on application. Common materials include aluminum alloy, cast iron, steel, epoxy tooling board, and composite materials. Each material has different machining requirements.
For example, aluminum tooling is often machined at high speeds to achieve efficient production and smooth finishes. Steel tooling requires greater cutting force and machine rigidity. Tooling boards and composite materials demand clean cutting and minimal heat generation. The high speed gantry machining center is flexible enough to handle these materials with the right spindle, cutting tools, and machining parameters.
Automation and Digital Manufacturing
In today’s aerospace industry, digital manufacturing is becoming increasingly important. High speed gantry machining centers can be integrated with CAD/CAM software, automatic tool changers, probing systems, and production monitoring systems. This integration makes it easier to move from digital design to finished tooling quickly and accurately.
Automation also improves production efficiency by reducing manual intervention. For large aerospace tooling projects, this means shorter lead times, lower labor costs, and better production consistency. Some advanced systems even support remote diagnostics and intelligent process optimization, further improving machine utilization.
Challenges and Considerations
Although high speed gantry machining centers offer many benefits, they also present challenges. Their size and cost are significant, and installation requires substantial floor space and foundation support. In addition, operators must have specialized knowledge of CNC programming, tool selection, and machining strategies.
However, for aerospace manufacturers and tooling suppliers, these investments are often justified by the machine’s productivity, precision, and ability to process large and complex parts. Over time, the efficiency gains and quality improvements can provide a strong return on investment.
Conclusion
The high speed gantry machining center has become an indispensable machine tool in aerospace tooling production. Its large machining capacity, high rigidity, precision control, and high-speed performance make it ideal for producing composite molds, assembly fixtures, structural tooling, and other critical aerospace components. As aerospace manufacturing continues to demand greater accuracy, larger part sizes, and faster production cycles, the role of gantry machining centers will become even more important.
By combining advanced mechanical design with modern CNC technology, high speed gantry machining centers help aerospace manufacturers achieve the high standards required for today’s aircraft and space systems. They are not only tools for machining, but also essential enablers of innovation, efficiency, and precision in the aerospace industry.
