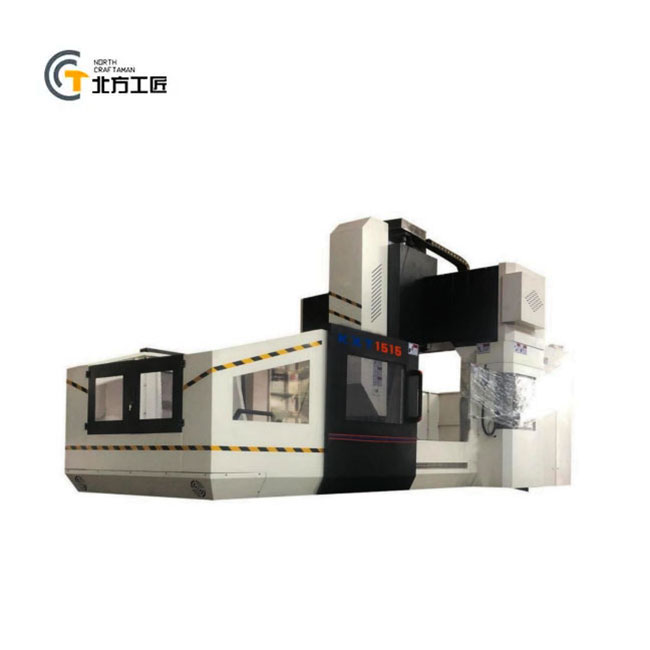

KTX 1515 CNC Gantry Boring Milling Machine

Technical Parameters

X axis	1500mm	Spindle motor power	11/15KW
Y axis	1500mm	Spindle motor torque	72/98N.m
Z axis	600mm	Rapid Traverse(X/Y/Z)	10/10/7m/min
Distance from spindle center to column	1500mm	Servo motor power(X/YIZ)	5.1/3.6/4.7KW
Distance from spindle nose to table	150-750mm	Servo motor torque(X/Y/Z)	28/18/23N.m
Table Size	1500*1200mm	Servo motor speed(X/YIZ)	2000rpm
Table Load	3T	Ball screw diameter(X/Y/Z)	50/50/50mm
T- Slot (Width x Number x Pitch)	22/5/160mm	Cutting feedrate	6000mm/min
Spindle Speed	3,000(6,000-opt.)	Minimum step equivalent	0.001mm
Spindle Taper	BT-50/ISO-50/CAT-50	CNC system	FANUC/SINUMERIK/SYNTECKND
