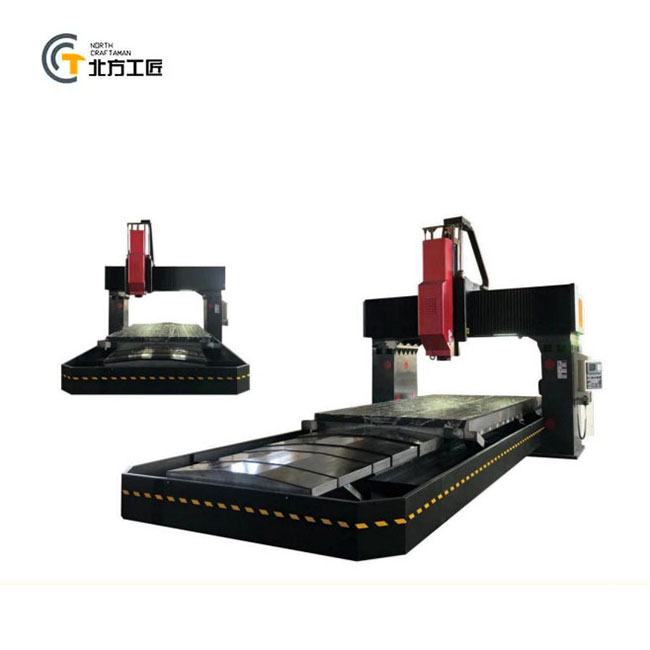

KTX 3025 CNC Gantry Boring Milling Machine

Technical Parameters

X axis	3200mm	Spindle motor power	18.5/22KW
Y axis	2500mm	Spindle motor torque	117/140N.m
Z axis	800mm	Rapid Traverse(X/Y/Z)	6/10/7m/min
Gantry span	2500mm	Servo motor power(X/YIZ)	7.5/5.5/5.5KW
Distance from spindle nose to table	150-950mm	Servo motor torque(X/Y/Z)	36/27/27N.m
Table Size	3000*2000mm	Servo motor speed(X/YIZ)	2000rpm
Table Load	8T	Ball screw diameter(X/Y/Z)	80/63/50mm
T- Slot (Width x Number x Pitch)	22/9/220mm	Cutting feedrate	6000mm/min
Spindle Speed	3,000(6,000-opt.)	Minimum step equivalent	0.001mm
Spindle Taper	BT-50/ISO-50/CAT-50	CNC system	FANUC/SINUMERIK/SYNTECKND
