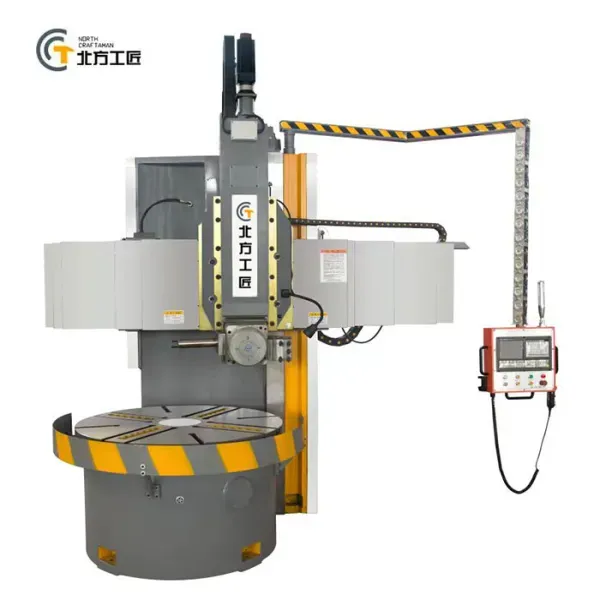

Precision vertical CNC lathe

The high-precision Vertical CNC Lathe spindle is vertically arranged, and the workpiece is attached to the chuck by gravity without warping or deformation during clamping. It is a specialized equipment for precision machining of disc type parts. The inclined bed of the whole machine is made of high rigidity castings, with optimized seismic structure and no shaking during the cutting process, ensuring micrometer level machining accuracy; The equipment is equipped with a fully closed-loop grating ruler detection system, with a shaft positioning accuracy of within 0.006mm and a repeat positioning accuracy of ≤ 0.002mm. It is equipped with a precision hydraulic self centering chuck, which has high clamping concentricity and is matched with a multi station precision tool tower. The tool position positioning is not offset, and it can complete the composite turning of inner and outer circles, end faces, sealing grooves, arcs, and precision threads in one go, with extremely strong consistency in machining dimensions. The high-speed electric spindle runs smoothly at both high and low speeds, with extremely low surface roughness values for precision machined workpieces. The tolerances of disc components such as flanges, bearing seats, hydraulic end caps, and gear discs remain stable and meet standards. The machine tool partition spray cooling system quickly dissipates heat, eliminating dimensional deviations caused by thermal expansion and contraction of workpieces. It can be equipped with an automated loading and unloading mechanism for batch processing of each product with uniform accuracy. The device occupies a small area and has built-in tool wear compensation and automatic size correction functions in the operating system, greatly reducing the frequency of manual measurement and adjustment. It is suitable for high-precision mass production of new energy, hydraulic precision accessories, and aviation small parts.
