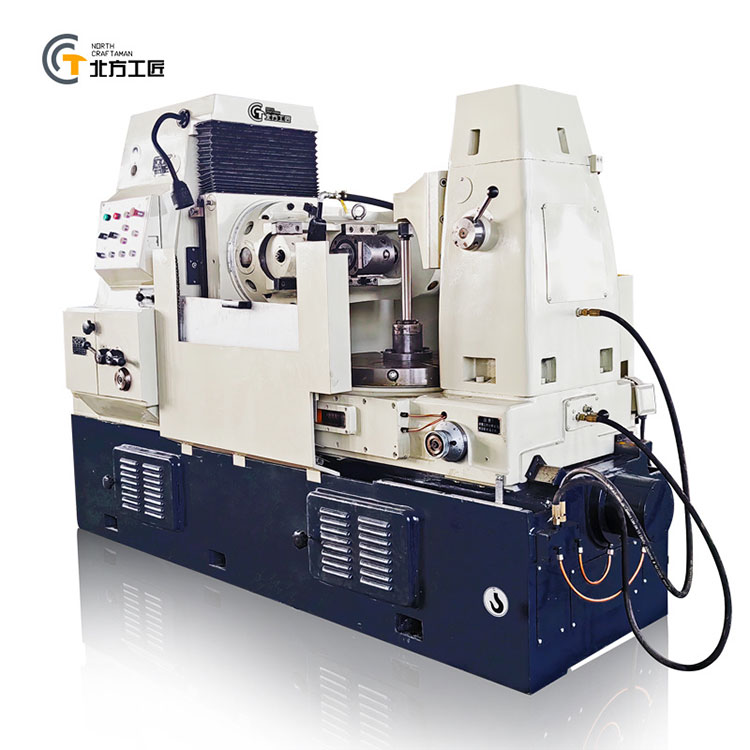

Y3180H Gear processing equipment

TECHNICAL SPECIFICATIONS：

最大加工直径	Max. processing diameter	550/800mm
最大加工宽度	Max processing width	300mm
最大加工模数	Max.processing module	10mm
刀架最大垂直行程	Max. vertical travel of tool holder	350mm
滚刀轴直径	Tool spindle diameter	480mm
滚刀主轴锥度	Tool spindle taper	22/27/32/40mm
工作台直径	Workbench diameter	650mm
工作台孔径	Workbench aperture	80mm
刀具主轴中心至工作台中心距离	Distance from tool center to workbench center	50~550mm
刀具主轴中心至工作台距离	Distance from tool center to worktable	235~585mm
刀具主轴转速	Tool spindle speed	40~200r/min
机床净重	Machine net weight	5500kg
外形尺寸	Dimensions	275014901870mm
