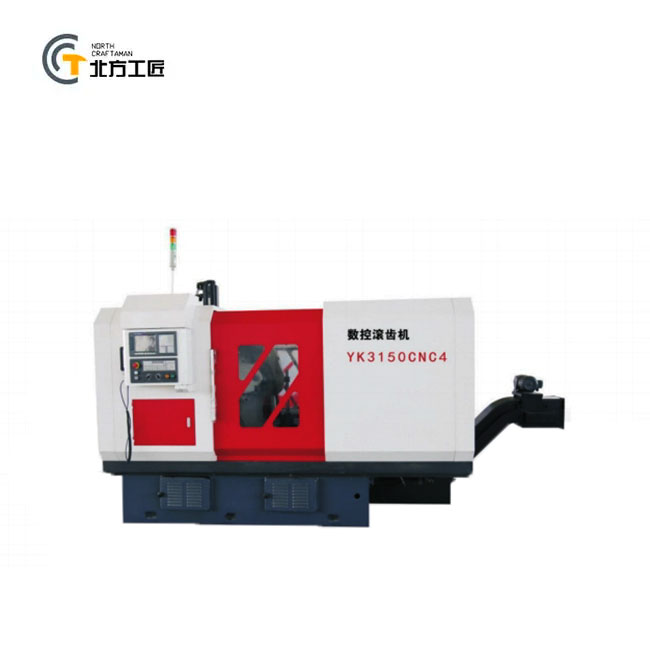

YK3150CNC4 CNC Gear Hobbing Machine

TECHNICAL SPECIFICATIONS

最大加工直径	Max processing diameter	415/500mm
最大加工宽度	Max.processing width	250mm
最大加工模数	Max.processing module	8mm
刀架最大垂直行程	Max. vertical travel of tool holder	300mm
滚刀轴直径	Tool spindle diameter	22/27/32mm
滚刀主轴锥度	Tool spindle taper	MT 5
工作台直径	Workbench diameter	520mm
工作台孔径	Workbench aperture	80mm
刀具主轴中心至工作台中心距离	Distance from tool center to workbench center	30~330mm
刀具主轴中心至工作台距离	Distance from tool center to worktable	225~525mm
刀具主轴转速	Tool spindle speed	40~330/min
机床净重	Machine net weight	6500kg
外形尺寸	Dimensions	357022352240mm
